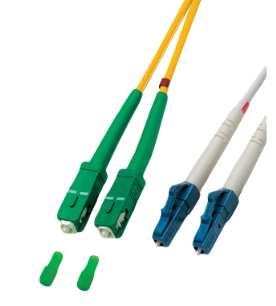

Glas Patchc. LC/PC-SC/APC SM 9/125 Duplex L=20m

(Halogen-free): according to IEC60754-1
APC version: Yes
APC version connector 1: 8°
Anti-kink sleeve: attachable
Bend-optimized fiber: no
Cable complies with standard: IEC 60793-2
Cable structure: Duplex
Cable type: I-V(ZN) H
Cable Ø: 2.0 mm
Category: OS2 G652D
Outer jacket color: yellow
Connector 1 color: green
Connector 2 color: blue
Fiber type: Singlemode 9/125
Flame retardant: according to EN 50265-2-1
Halogen-free (according to EN 50267-2-3): Yes
Sheath material: LSZH
Low smoke emission: according to IEC61034-1
Max. tension: 160 N
Min. bending radius (dynamic): 20xOD
Min. bending radius (static): 10xOD
Number of fibers: 2
Operating temperature: -20 – 75 °C
Single-mode quality class: B/2 according to IEC 61753-1
Storage temperature: -20 – 85 °C
Connector type 1: SC duplex
Connector type 2: LC duplex
